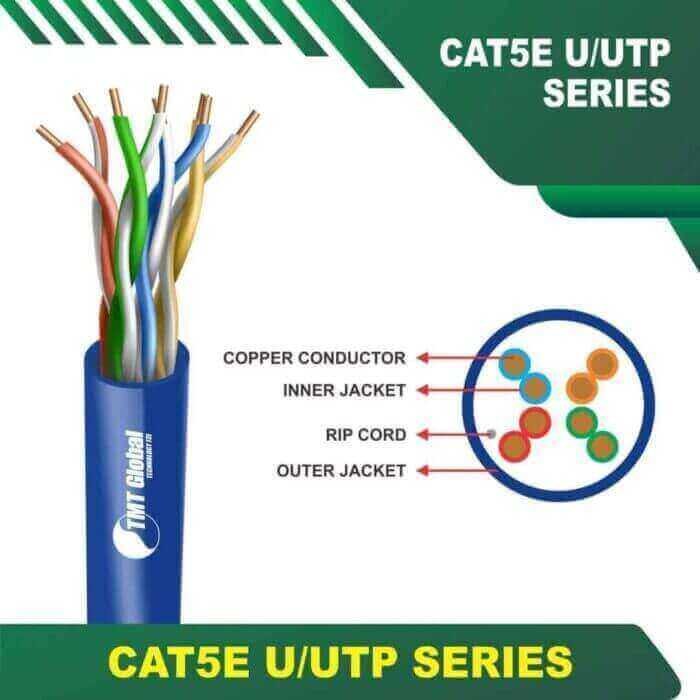

TMT GLOBAL cat5e cable u/utp 24 awg 4 pair 305m TMT GLOBAL Cat6a Elevator Travelling Network Cable are Manufactured Tested and Complied with ANSI/TIA/568.2-D CENELEC EN 50288-5IEC 61156-5 (ISO/IEC-11801 Class -Ea). Cat6a Series is Designed to Ensure the Highest levels of performance, reliability, and longevity, and are ideal for large enterprise and small business.cat5e cable u/utp 24 awg 4 pair 305m PHYSICAL AND MECHANICAL PROPERTIES Basic Conductor: 23AWG TMT Copper Insulation: HDPE Number of insulated conductors: 8 twisted in 4 pairs Color Code of Pairs: Blue x White/Blue, Orange x White/Orange, Green x White/Green, Brown x White/Brown Outer Jacket: LSZH Standard Jacket Color: Black /Grey/Blue/Orange/ Green/White/Aqua/ Yellows/Violet/Red Standard Surface Marking: Includes TMT Global P/N, cable description, Meter mark and Model Number Pulling force: 100 N MAX Short Term Bend Radius: 6xOD (Mm) Storage Temperature: -20 To 80C Temperature operating range: -20 to 60C Installation temperature range: 0 to 50C Flame Test: IEC 60332-1 ELECTRICAL SPECIFICATIONS Characteristic Impedance: 100―6 Ohm @ 1-100 MHz DC Resistance: 93 Ohm/Km max. Resistance unbalance: 2% max. Mutual Capacitance: 5.6 nF/100m Max. @ 1 KHz Cap Unbalance (wire to ground): 1500 pF/Km max. @ 1 KHz. Voltage rating: 72 Vdc max. Dielectric strength: 1500 Volts/1 minute min rms Velocity of Propagation (NVP): 67-69% Insulation Resistance: 5000 MOhm•m min. @ 500 Vdc Coupling attenuation: IEC 61156-5 TYPE III
