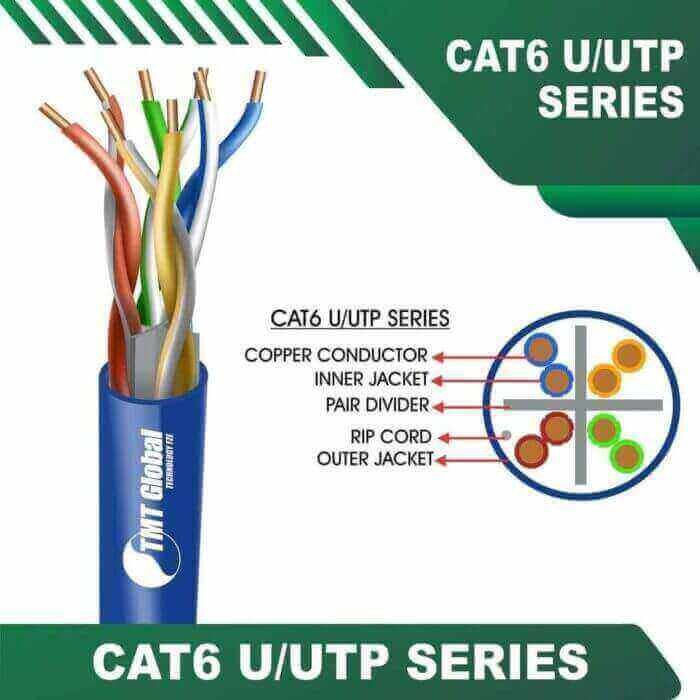

tmt Cat6 23awg 4 twisted pair U-UTP Ethernet Cable 305m TMT Global 23awg cat 6 cable 4 twisted pair UTP Ethernet Cable 305m Network Cable 305m are Manufactured Tested and Complied with ANSI/TIA/568.2-D CENELEC EN 50288-5IEC 61156-5 (ISO/IEC-11801 Class -E). including Amendment A1:2010 Requirements for Patch Cord Assemblies and Provide High Performance levels for structured cabling systems.Cat6 23awg 4 twisted pair U-UTP Ethernet Cable 305m Audio Video Intercom Systems Audio Visual Systems Public Address Systems. Industrial and Building automation Cables and Accessories which leads to satisfaction and reliability to customers. All TMT Global Products meet or Exceed Rigorous Industry and PHYSICAL AND MECHANICAL PROPERTIES Basic Conductor: 23AWG Bare Copper Insulation: HDPE Number of insulated conductors: 8 twisted in 4 pairs Color Code of Pairs: Blue x White/Blue, Orange x White/Orange, Green x White/Green, Brown x White/Brown Outer Jacket: PVC Standard Jacket Color: Black /Grey/Blue/Orange/ Green/White/Aqua/ Yellows/Violet/Red Standard Surface Marking: Includes TMT Global P/N, cable description, Meter mark and Model Number Pulling force: 100 N MAX. Short Term Bend Radius: 6xOD (Mm) Storage Temperature: -20 To 80C Temperature operating range: -20 to 60C Installation temperature range: 0 to 50C Flame Test: IEC 60332-1 ELECTRICAL SPECIFICATIONS Characteristic Impedance: 100―6 Ohm @ 1-100 MHz DC Resistance: 93 Ohm/Km max. Resistance unbalance: 2% max. Mutual Capacitance: 5.6 nF/100m Max. @ 1 KHz Cap. Unbalance (wire to ground): 1500 pF/Km max. @ 1 KHz. Voltage rating: 72 Vdc max. Dielectric strength: 1500 Volts/1 minute min rms Velocity of Propagation (NVP): 67-69% Insulation Resistance: 5000 MOhm•m min. @ 500 Vdc Coupling attenuation: IEC 61156-5 TYPE III
