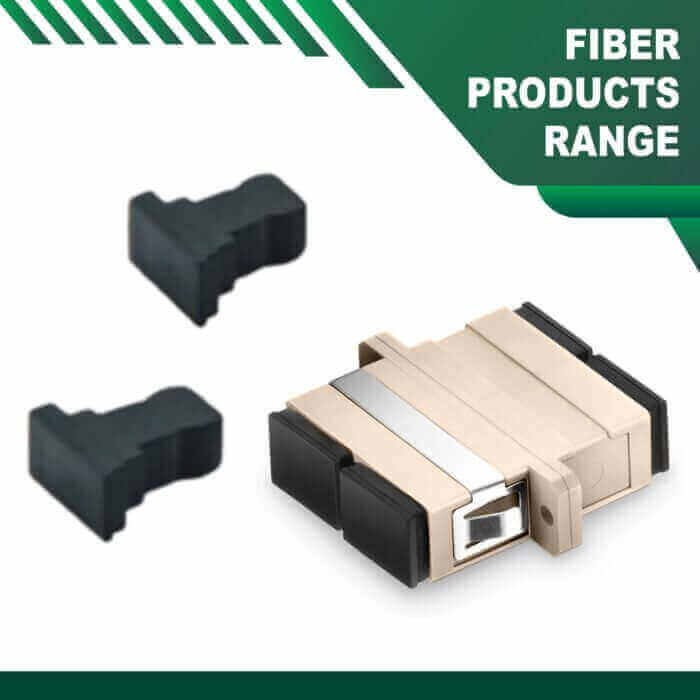

SC UPC Optical adapter Duplex Connector Multimode

TMT GLOBAL Optical Connector adapter om2 SC-UPC Multimode Duplex Explore the importance of optical connector adapters in fiber optic systems, highlighting the versatile OM4 SC/UPC multimode simplex adapter for high-speed data transmission. Understand the different types of optical connectors including OM2, OM3, and single-mode options, and learn why TMT Global Technology Ltd. is a trusted manufacturer in this field. Enhance your networking capabilities with industry-standard, high-quality connectors designed for reliable performance in data centers and high-bandwidth environments.SC UPC Optical adapter Duplex Connector Multimode Features TIA/EIA-604 FOCIS-10 compatible; exceeds TIA/EIA-568-B.3 requirements Complies with IEC 61754-4, Flammability UL94 V-0 standard Available in Flanged and Flangeless options Precision connection with sleeve Low insertion loss, High Return loss Good interchangeability and reliability Meet IEC and ROHS standards High precision of mechanical dimensions Accuracy Products Specifications Adapter Type: LC-LC,SC-SC Polish Type: UPC Body Type: Simplex, Duplex Fiber Mode: Multi Mode Insertion Loss: ≤0.2dB Durability: 1000 time Flammability Rate: UL94-V0 Alignment Sleeve Material: Ceramic Storage Temp（℃）: -40～ 85 General Specification Adapter Type : SC-SC Polish Type : UPC Body Type : Duplex Fiber Mode : Multi Mode Insertion Loss : ≤0.2dB Durability : 1000 time Flammability Rate : UL94-V0 Alignment Sleeve Material : Ceramic Storage Temp（℃ : -40～ 85 Products ID : TMT-SCDXU4P Environment and Mechanical Properties                                        Test condition                                                     Conformance          Test result Vibration                                               10-55Hz, 1.5mm, 60min                                           IEC61300-2-1             ≤0.2dB Mating Durability                                1000 Mating, clean every 25 mating                     IEC61300-2-2             ≤0.2dB Impact                                                    1.5m, 8 drops                                                              IEC61300-2-6             ≤0.2dB Strength of Coupling Mechanism    40N, 10Min, L=22-28cm                                          IEC61300-2-12           ≤0.2dB Temperature Cycling                          40ºC to 75ºC, 40 cycles                                          IEC61300-2-22           ≤0.2dB Temperature humidity cycling          40ºC， 95%， 96Hr                                                 IEC61300-2-21            ≤0.2dB Operating Temperature                     -40ºC to 85ºC Storage Temperature                          -40ºC to 85ºC
