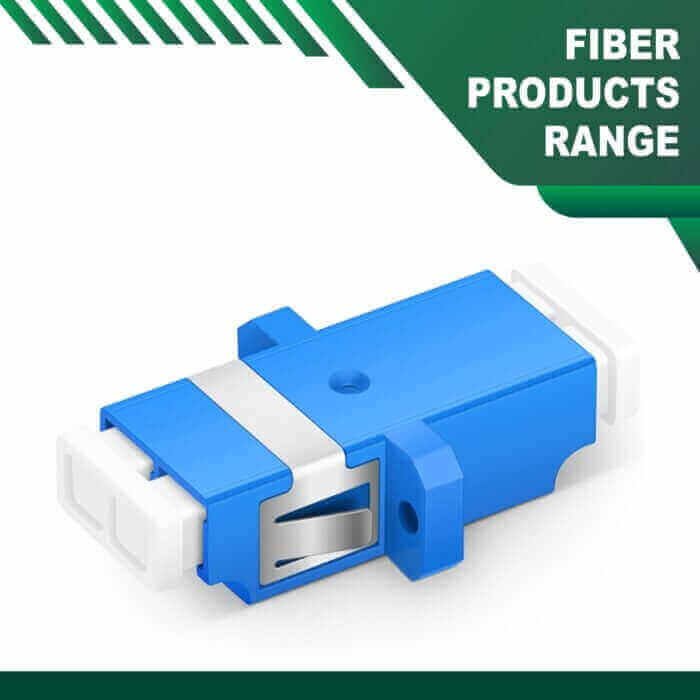

TMT GLOBAL Optical Connector adapter LC-UPC Single Mode duplex Explore the importance of optical connector adapters in fiber optic systems, highlighting the versatile OM4 SC/UPC multimode simplex adapter for high-speed data transmission. Understand the different types of optical connectors including OM2, OM3, and single-mode options, and learn why TMT Global Technology Ltd. is a trusted manufacturer in this field. Enhance your networking capabilities with industry-standard, high-quality connectors designed for reliable performance in data centers and high-bandwidth environments.lc/ upc adapter duplex fiber Optical Connector Single Mode Features TIA/EIA-604 FOCIS-10 compatible; exceeds TIA/EIA-568-B.3 requirements Complies with IEC 61754-4, Flammability UL94 V-0 standard Available in Flanged and Flangeless options Precision connection with sleeve Low insertion loss, High Return loss Good interchangeability and reliability Meet IEC and ROHS standards High precision of mechanical dimensions Accuracy Products Specifications Adapter Type: LC-LC,SC-SC Polish Type: UPC Body Type: Simplex, Duplex Fiber Mode: Multi Mode Insertion Loss: ≤0.2dB Durability: 1000 time Flammability Rate: UL94-V0 Alignment Sleeve Material: Ceramic Storage Temp（℃）: -40～ 85 General Specification Adapter Type : SC-SC Polish Type : UPC Body Type : Duplex Fiber Mode : Multi Mode Insertion Loss : ≤0.2dB Durability : 1000 time Flammability Rate : UL94-V0 Alignment Sleeve Material : Ceramic Storage Temp（℃ : -40～ 85 Products ID : TMT-SCDXU4P Environment and Mechanical Properties Test condition Conformance Test result Vibration 10-55Hz, 1.5mm, 60min IEC61300-2-1 ≤0.2dB Mating Durability 1000 Mating, clean every 25 mating IEC61300-2-2 ≤0.2dB Impact 1.5m, 8 drops IEC61300-2-6 ≤0.2dB Strength of Coupling Mechanism 40N, 10Min, L=22-28cm IEC61300-2-12 ≤0.2dB Temperature Cycling 40ºC to 75ºC, 40 cycles IEC61300-2-22 ≤0.2dB Temperature humidity cycling 40ºC， 95%， 96Hr IEC61300-2-21 ≤0.2dB Operating Temperature -40ºC to 85ºC Storage Temperature -40ºC to 85ºC
