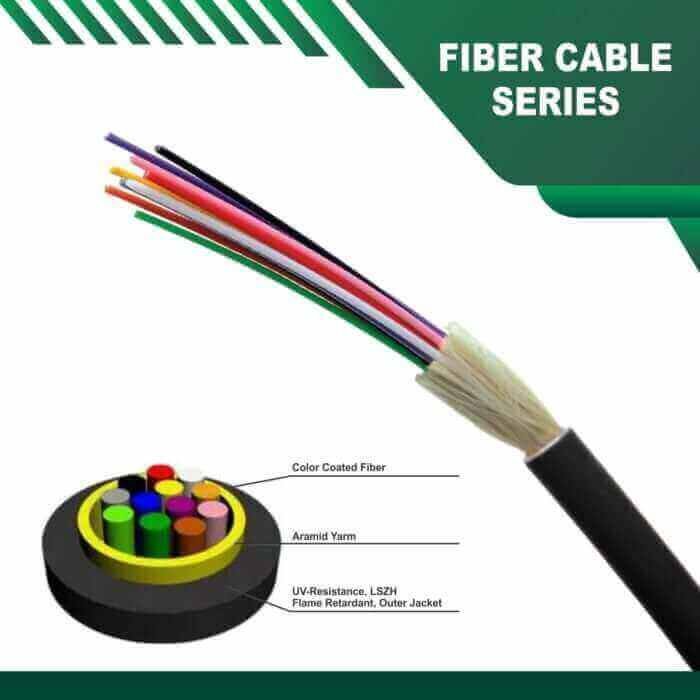

24 core Fiber Optic Cable om2 multimode

TMT GLOBAL Fiber Optic Cable multimode 24 core om2 TMT GLOBAL  provides high-strength optical fiber cables for use in various industrial, indoor, and outdoor applications. Offering unique properties and benefits for different types of use, 24 core Fiber Optic Cable om2 multimode TMT GLOBAL Fiber Optic Cable Multimode 24 Core OM2 is designed for high-speed data transmission and reliable network performance. Featuring 24 multimode fibers, this OM2 cable is ideal for medium-distance applications such as data centers, enterprise networks, and telecommunications. Its durable construction ensures long-lasting use, while the advanced optical technology guarantees stable and efficient connectivity for your critical systems. PHYSICAL DESCRIPTION Products: multi mode Fiber optic cable Tube Filling Compound: Thixotropic jelly /N Fiber Type: 50/125 OM4 Tube material: PBT ( Polybutylene Terephthalate) Armored: N Packing Detail Fiber Count: 6,8,12,24, Tube Outer/Inner Diameter(mm): 3.0/2.0 ± Cable Diameter(mm): 4.2*-12 Cable Weight(kg/km): 45± Length/ Drum: 2000 m Drum ±5% Ripcord: Polyester cord Outer Jacket: PE,MDPE, LSZH Mechanical and Environmental Properties  Physical tests                                                               Value                                                   Standard Tensile Strength                                                                 2700 N (During Installation)              IEC 60794-1-E1                                                                                                 1700 N (During Operation) Impact Resistance                                                              10J, 3 impacts                                        IEC 60794-1-E4 Crush Resistance                                                                220 N/cm                                                IEC 60794-1-E3 Temperature Cycling                                                         -40 to 70 °C                                          IEC 60794-1-F1 Flame Retardancy                                                              According to IEC 60332-3                   IEC 60332-3 Cable Bending Radius Bend Radius (during installation)                                  20x Cable Diameter                                IEC 60794-1-2-E11A Bend Radius (during Service) 1                                       0x Cable Diameter                                  IEC 60794-1-E11 Repeating Bending                                                             20x Cable Diameter                               IEC 60794-1-E6 Temperature Range) Operation Temperature                                                   -40 to 70 C                                             IEC 60794-1-2-F1 Storage and Transportation Temperature                   -40 to 70 C Installation Temperature                                                 -30 to 60 C Optical Characteristics Attenuation (max): 3.5 dB/km (850 nm) 1.5 dB/km (1300 nm) Bandwidth (Laser EMB): 2000 MHz.km(850) 500 MHz.km (1300nm) Bandwidth (Overfilled): 3500 MHz.km (850 nm) 500 MHz.km (1300 nm) Numerical Aperture:0.2±0.015 Core Diameter: 50 ± 2 μm Cladding Diameter: 125 ± 1μm Core/Clad Concentricity error: ≤ 1 μm Cladding non-circularity:≤ 0.7 % Coating Diameter:242 ± 5 μm Proof Test: ≥ 100kpsi or 0.7GPa
