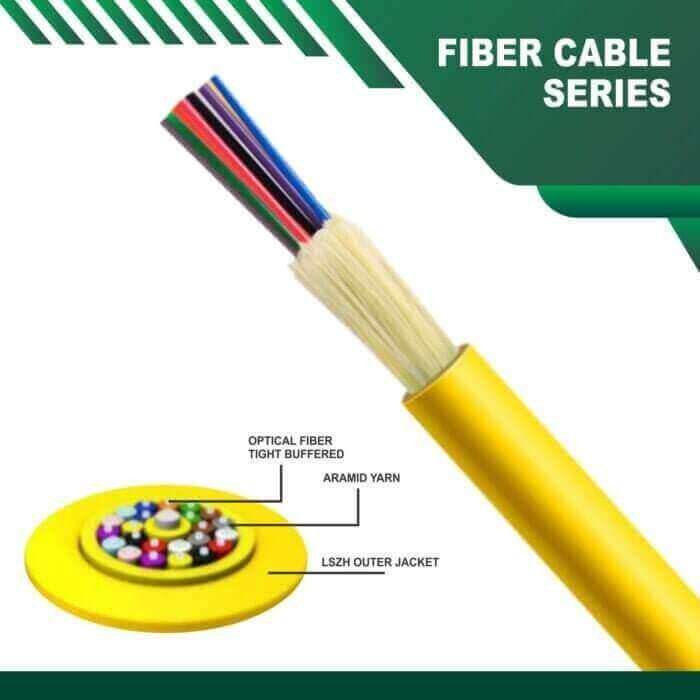

TMT GLOBAL 24 core single mode fiber optic cable Multi Core LSZH G652D TMT GLOBAL 24 core single mode fiber optic cable Multi Core LSZH G652D fiber optic cable Multi Core single mode 24core LSZH G.652D Single mode Indoor/outdoor Optical Fiber Cable Loose Tubes 6,8,12,24,48,96,128-Core LSZH-Armored TMT GLOBAL provides high-strength optical fiber cables for use in various industrial, indoor, and outdoor applications. Offering unique properties and benefits for different types of use, our communications optical fiber cable products can easily meet complex application requirements and specifications. TMTGLOBAL optical fiber cable FTTH ,FTTX , indoor/outdoor SM/MM, OS1,OS2 ,OM1,OM2,OM3,OM4 is compliant with ISO/IEC and ANSI/TIA Standard. PHYSICAL DESCRIPTION Products: Fiber optic cable single mode Tube Filling Compound: Thixotropic jelly Fiber Type: ITU-T G.657A1/A2,G.652D Tube material: PBT ( Polybutylene Terephthalate) Armored: Corrugated steel tape Packing Detail Fiber Count: 6,8,12,24,48,96,128 Tube Outer/Inner Diameter(mm): 3.0/2.0 ± Cable Diameter(mm): 7.2*-12 Cable Weight(kg/km): 45± Length/ Drum: 2000 m Drum ±5% Ripcord: Polyester cord Outer Jacket: PE,MDPE, LSZH Mechanical and Environmental Properties Physical tests Value Standard Tensile Strength 2700 N (during Installation) IEC 60794-1-E1 1700 N (during Operation) Impact Resistance 10J, 3 impacts IEC 60794-1-E4 Crush Resistance 220 N/cm IEC 60794-1-E3 Temperature Cycling -40 to 70 °C IEC 60794-1-F1 Flame Retardancy According to IEC 60332-3 IEC 60332-3 Cable Bending Radius Bend Radius (during installation) 20x cable diameter IEC 60794-1-2-E11A Bend Radius (during Service) 1 0x cable diameter IEC 60794-1-E11 Repeating Bending 20x cable diameter IEC 60794-1-E6 Temperature Range) Operation Temperature -40 to 70 C IEC 60794-1-2-F1 Storage and Transportation Temperature -40 to 70 C Installation Temperature -30 to 60 C Optical Characteristics Fiber type ITU-T G.652D ITU-T G.657/A1 ITU-T G.657/A2 Attenuation (max) 0.40 dB/km (1310 nm) 0.40 dB/km (1310 nm) 0.35 dB/km (1310 nm) 0.25 dB/km (1550 nm) 0.25 dB/km (1550 nm) 0.22 dB/km (1550 nm) MFD 9.0±0.4 μm (1310 nm) 9.0±0.4 μm (1310 nm) 8.6 ± 0.4 μm (1310 nm) 10.1±0.5 μm (1550 nm) 10.1±0.5 μm (1550 nm) Cladding diameter 125 ± 0.3 μm 125 ± 0.7 μm 125 ± 0.7 μm Core/Clad Concentricity error ≤ 0.5 μm ≤ 0.5 μm ≤ 0.5 μm Zero dispersion wavelength 1300nm≤ ≤1324nm 1300nm≤ ≤1324nm 1302nm≤ ≤1322nm Cladding non-circularity ≤ 0.7 % ≤ 0.7 % 1% Coating diameter 245 ± 10 μm 242 ± 7 μm 240 ± 5 μm Cut Off Wavelength ≤ 1260nm ≤ 1260nm ≤ 1260nm Proof Test ≥ 1% (100kpsi or 0.7GPa) ≥ 1% (100kpsi or 0.7GPa) ≥ 1% (100kpsi or 0.7GPa) Macro bending Attenuation : (10 turn on a 15 mm radius mandrel) ≤ 0.25 dB @1550 nm ≤ 0.5dB @1550 nm
