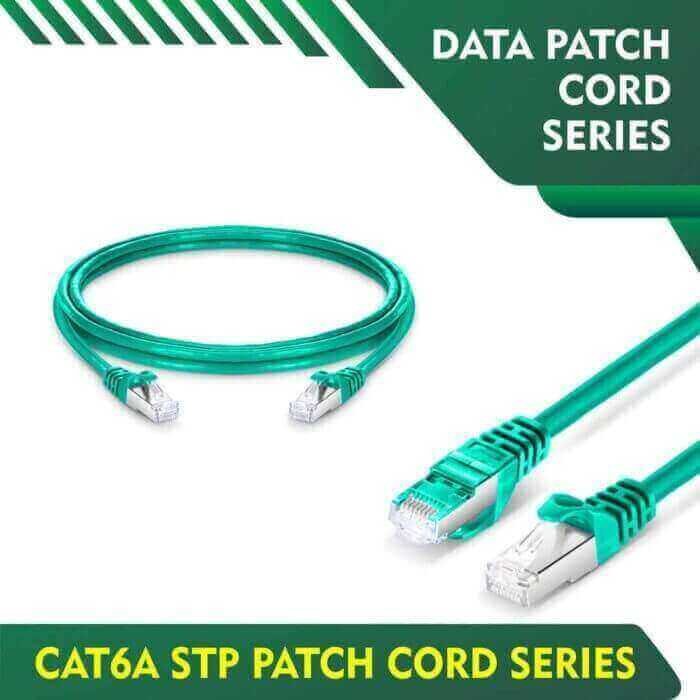

TMT GLOBAL cat6a 23awg ethernet stp patch cord series 3 meter TMT Global cat6a 23awg ethernet stp patch cord aqua are Manufactured Tested and Complied with IEC 60332-1-2 EN 50173-1:2011 ISO/IEC11801:2011(Ed. 2.2) ANSI/TIA/EIA-568.2-D IEC61935-2:2010(Ed.3.0) EN 50173-2:2007 including Amendment A1:2010 Requirements for Patch Cord Assemblies and Provide High Performance levels for structured cabling systems. cat6a 23awg ethernet stp patch cord series 3 meter APPLICATION 10BASE-T, 100BASE-TX Fast Ethernet, 1000BASE-T (IEEE802.3 100VG-AnyLAN (IEEE802.12) 550 MHz Broadband Video Voice, T1, ISDN 155/ 622 Mbps ATM Power over Ethernet (POE) GENERAL SPECIFICATION 4 Pairs shielded Twisted Pair (STP) Cable Gold Plated: 30U” Color Code: Aqua/Black/Blue/green/Grey/Orange/Red/Violet/White/Yellow r custom color Length : 0.12/0.15/0.50/1/2/3/5/8/10/15/20/25/30/40/50/70/100/meter r custom Length Contact blade: Phosphor Bronze Insulation Material: HD-PE-PVC-LSZH Jacket Material: PVC UL94V-0 PHYSICAL AND MECHANICAL PROPERTIES Conductor Resistance: ≤5Ω – ≤20Ω Insulation Resistance: ≥10MΩ Characteristic Impedance: 100 ― 6 Ohm @ 1-250MHz -1-500 MHz Contact Resistance: 20 m Ohm max Resistance unbalance: 2% max Dielectric strength: 1000 volts/1 minute min rms Cable to Plug Tensile Strength: 9 Kgf (90N) min Durability: 750 Temperature Operating Range: -25°C to 70°C Country Of Origin: Made in UAE
