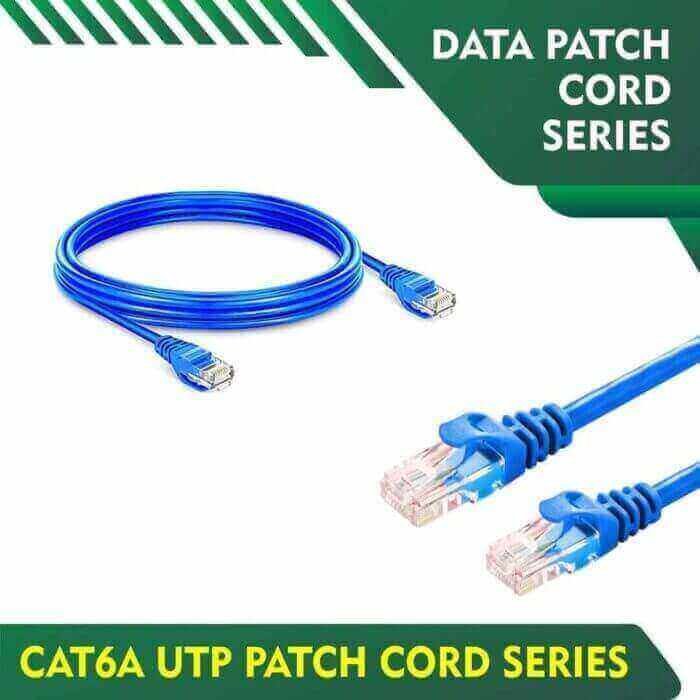

0.15 meter cat6a patch cable 23awg network cable utp

TMT GLOBAL cat6a 24awg network utp patch cord 0.15m TMT Global 0.15 meter cat6a patch cable 23awg network cable utp are Manufactured Tested and Complied with IEC 60332-1-2 EN 50173-1:2011 ISO/IEC11801:2011(Ed. 2.2) ANSI/TIA/EIA-568.2-D IEC61935-2:2010(Ed.3.0) EN 50173-2:2007 including Amendment A1:2010 Requirements for Patch Cord Assemblies and Provide High Performance levels for structured cabling systems.cat6a 24awg network utp patch cord series 0.15 meter APPLICATION 10BASE-T, 100BASE-TX Fast Ethernet, 1000BASE-T (IEEE802.3 100VG-AnyLAN (IEEE802.12) 550 MHz Broadband Video Voice, T1, ISDN 155/ 622 Mbps ATM Power over Ethernet (POE) GENERAL SPECIFICATION 4 Pairs shielded Twisted Pair (UTP) Cable Gold Plated: 30U” Color Code: Aqua/Black/Blue/green/Grey/Orange/Red/Violet/White/Yellow r custom color Length : 0.12/0.15/0.50/1/2/3/5/8/10/15/20/25/30/40/50/70/100/meter r custom Length Contact blade: Phosphor Bronze Insulation Material: HD-PE-PVC-LSZH Jacket Material: PVC UL94V-0 PHYSICAL AND MECHANICAL PROPERTIES Conductor Resistance: ≤5Ω – ≤20Ω Insulation Resistance: ≥10MΩ Characteristic Impedance: 100 ― 6 Ohm @ 1-250MHz -1-500 MHz Contact Resistance: 20 m Ohm max Resistance unbalance: 2% max Dielectric strength: 1000 volts/1 minute min rms Cable to Plug Tensile Strength: 9 Kgf (90N) min Durability: 750 Temperature Operating Range: -25°C to 70°C Country Of Origin: Made in UAE
