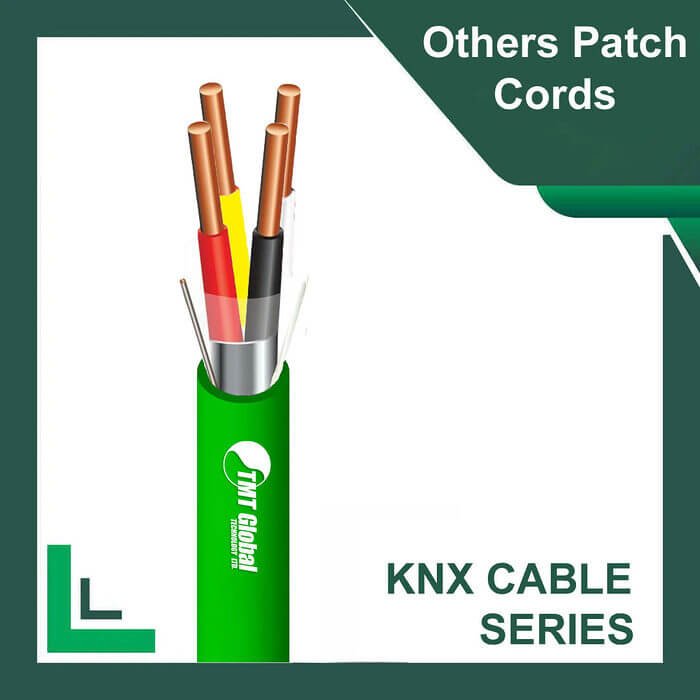

TMT Global 2 Pair 4 core KNX Control Cable LSHF 305m Roll The tmt global KNX system by tmt global technology ltd serves as an open standard for automating both commercial and residential buildings. KNX devices, including lighting, blinds, HVAC, security systems, and more, enable comprehensive control. Originating from the European Home Systems Protocol, BatiBUS, and the European Installation Bus, KNX supports various communication links such as twisted pair, powerline, RF, or IP connections. Through distributed applications, KNX devices interact seamlessly, facilitated by standardized datapoint types and objects. Formerly known as EIB, KNX systems offer precise control over heating, lighting, and air conditioning based on external climate conditions or preset levels through logical device channels.2 Pair 4 core KNX Control Cable LSHF 305m Roll smart home system control Electrical Characteristics Nominal Conductor Resistance < 38.5 Ω/km Insulation Resistance > 200MΩ.M Voltage Rating 450/750V Test Voltage 2.5kV for 5 minutes Overall Diameter 6.8 ± 0.2mm Min Bend Radius 10 x OD PHYSICAL AND MECHANICAL PROPERTIES Conductor Material Bare Copper, (1/0.8mm) Pair Insulation Material Polyethylene (PE) Number of Pairs 2 Fillers Cotton Thread Overall Tape Polyester Drain Wire Copper Overall Screen Overall Aluminum Foil (100% Coverage) Sheath Material PVC/ Low Smoke Halogen Free (LSHF) Sheath Colour Green Core Identification Red, Black Storage Temperature -30°C to 70°C Temperature operating range -20°C to 70°C Flame Test IEC 60332-1-2 PHYSICAL AND MECHANICAL PROPERTIES Conductor Material Bare Copper, (1/0.8mm) Pair Insulation Material Polyethylene (PE) Number of Pairs 1 Fillers Cotton Thread Overall Tape Polyester Drain Wire Copper Overall Screen Overall Aluminum Foil (100% Coverage) Sheath Material PVC/ Low Smoke Halogen Free (LSHF) Sheath Colour Green Core Identification Red, & Black Yellow & white Storage Temperature -30°C to 70°C Temperature operating range -20°C to 70°C Flame Test IEC 60332-1-2 Ordering Information 0420BFSRN-KX 5X145BPB 4 CORE KNX Cables 305m Roll
