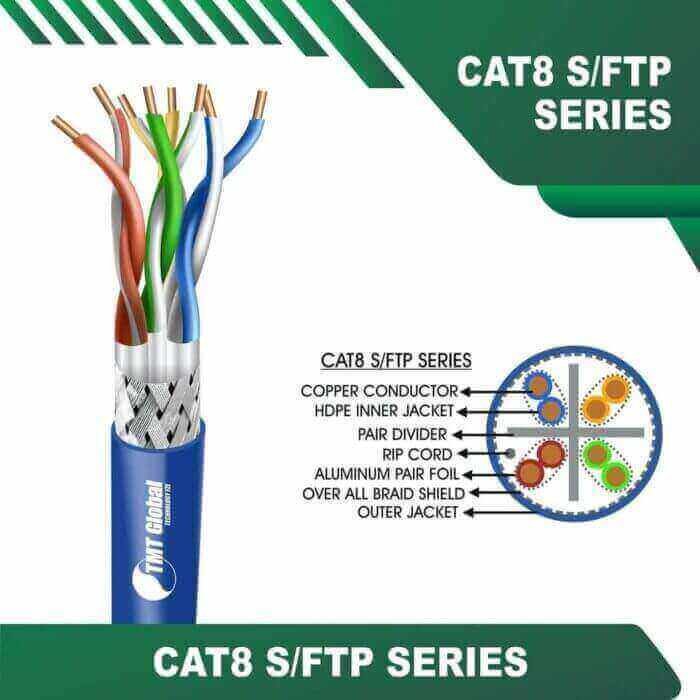

TMT Global 23WG CAT8 S/FTP LAN Cable 305M TMT GLOBAL CAT8 Network Cable S-FTP 305M are Manufactured Tested and Complied with ANSI/TIA/568.2-D CENELEC EN 50288-5 IEC 61156-5 (ISO/IEC-11801 Class -Ea). Cat6a Series is Designed to Ensure the Highest levels of performance, reliability, and longevity, and are ideal for large enterprise and small business. The TMT Global 23WG CAT8 S/FTP LAN Cable, available in a 305-meter length, is engineered for high-speed data transmission and superior network performance. Featuring S/FTP (Shielded Foiled Twisted Pair) construction, this cable minimizes electromagnetic interference and crosstalk, ensuring stable and reliable connectivity. Ideal for demanding environments, it supports bandwidths up to 2000MHz and data rates up to 40Gbps, making it perfect for data centers, enterprise networks, and high-performance applications. PHYSICAL AND MECHANICAL PROPERTIES Basic Conductor: 23AWG TMT Copper Insulation: HDPE Number of insulated conductors: 8 twisted in 4 pairs Color Code of Pairs: Blue x White/Blue, Orange x White/Orange, Green x White/Green, Brown x White/Brown Outer Jacket: LSZH Standard Jacket Color: Black /Grey/Blue/Orange/ Green/White/Aqua/ Yellows/Violet/Red Standard Surface Marking: Includes TMT Global P/N, cable description, Meter mark and Model Number Pulling force: 100 N MAX Short Term Bend Radius: 6xOD (Mm) Storage Temperature: -20 To 80C Temperature operating range: -20 to 60C Installation temperature range: 0 to 50C Flame Test: IEC 60332-1 ELECTRICAL SPECIFICATIONS Characteristic Impedance: 100―6 Ohm @ 1-100 MHz DC Resistance: 93 Ohm/Km max. Resistance unbalance: 2% max. Mutual Capacitance: 5.6 nF/100m Max. @ 1 KHz Cap Unbalance (wire to ground): 1500 pF/Km max. @ 1 KHz. Voltage rating: 72 Vdc max. Dielectric strength: 1500 Volts/1 minute min rms Velocity of Propagation (NVP): 67-69% Insulation Resistance: 5000 MOhmm min. @ 500 Vdc Coupling attenuation: IEC 61156-5 TYPE III
