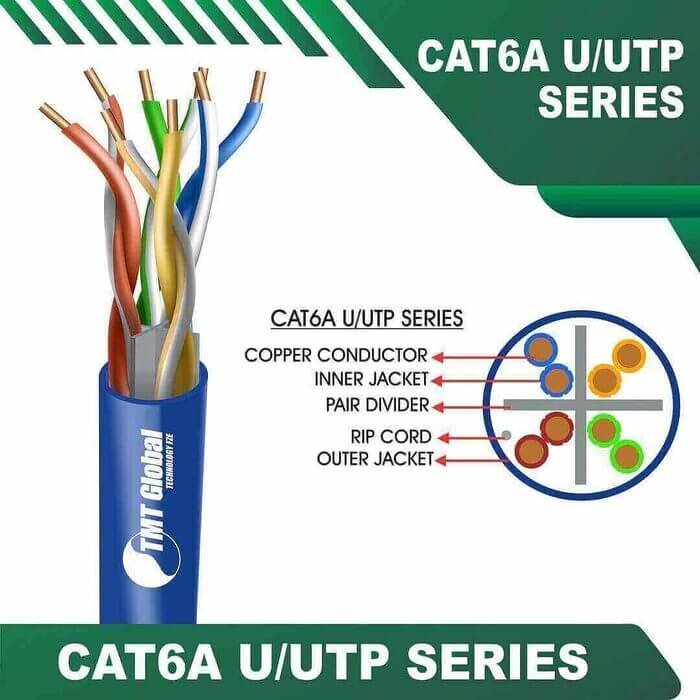

Cat6a u utp 6axx6m LSZH Cable 23 awg 4 pair 305m

TMT GLOBAL Cat6a u utp 6axx6m LSZH Cable 23 awg 4 pair 305m TMT global Cat6a u utp 6axx6m LSZH Cable 23 awg 4 pair 305m is manufactured, tested, and compliant with ANSI/TIA-568.2-D, CENELEC EN 50288-5, and IEC 61156-5 (ISO/IEC 11801 Class E), including Amendment A1:2010 requirements for patch cord assemblies, and provides high performance levels for structured cabling systems.TMT Global Technology LTD aims to provide the best quality products in Structured Cabling Systems, Copper and Fiber Optics Range, Access Control Systems, Gate Automation, Lighting Control Systems, PIR Motion Sensors, UHF Long Range Readers, Automatic Parking Solutions, SMATV Systems, Audio Video Intercom Systems, Audio Visual Systems, and Public Address Systems. Industrial and Building Automation Cables and Accessories lead to customer satisfaction and reliability. All TMT Global products meet or exceed rigorous industry and regulatory standards for quality, reliability, and efficiency. From design and fabrication to finished product assembly, each phase in the manufacturing process is meticulously executed. APPLICATION 10BASE-T, 100BASE-TX Fast Ethernet, 1000BASE-T (IEEE802.3 100VG-AnyLAN (IEEE802.12) 550 MHz Broadband Video Voice, T1, ISDN 155/ 622 Mbps ATM Power over Ethernet (POE) POE ELECTRICAL SPECIFICATIONS Characteristic Impedance: 100±6 Ohm @ 1-500 MHz Loop Resistance: 25 Resistance unbalance: 2% max. Mutual Capacitance: 5.6 nF/100m Max. @ 1 KHz Cap. Unbalance (wire to ground): 1500 pF/Km max. @ 1 KHz. Voltage rating: 72 Vdc max. Dielectric strength: 1500 Volts/1 minute min rms Velocity of Propagation (NVP): 67-69% Propagation Delay Skew: 534 36/vf. nS/100m max @ 1-500 MHz Insulation Resistance: 45 nS/100m max @ 1-500 MHz Coupling attenuation: 55 dB min @ 30-100 MHz 55-20Log(f/100) @100-500 MHz PHYSICAL AND MECHANICAL PROPERTIES Basic Conductor: tmt copper Conductor Size: 23AWG Insulation: HDPE Number of insulated conductors: 8, twisted in 4 pairs Color Code of Pairs: Blue x White/Blue, Orange x White/Orange, Green x White/Green, Brown x White/Brown Overall Coverage: N Drain wire: N Outer Jacket: LSZH Standard Jacket Color:Blue/Gray /Black/Green/Orange/Red/Violet/White/Yellow/AQUA Standard Surface Marking: Includes TMT Global P/N, cable description, Meter mark and Model Number Pulling force: 110 N max. Short Term Bend Radius: 8xOD (mm) Temperature operating range: -20 to 80C Installation temperature range: 0 to 50C Ordering Information Item Name: 23AWG 4PAIR CAT6A U/UTP CABLE LSZH 305M
