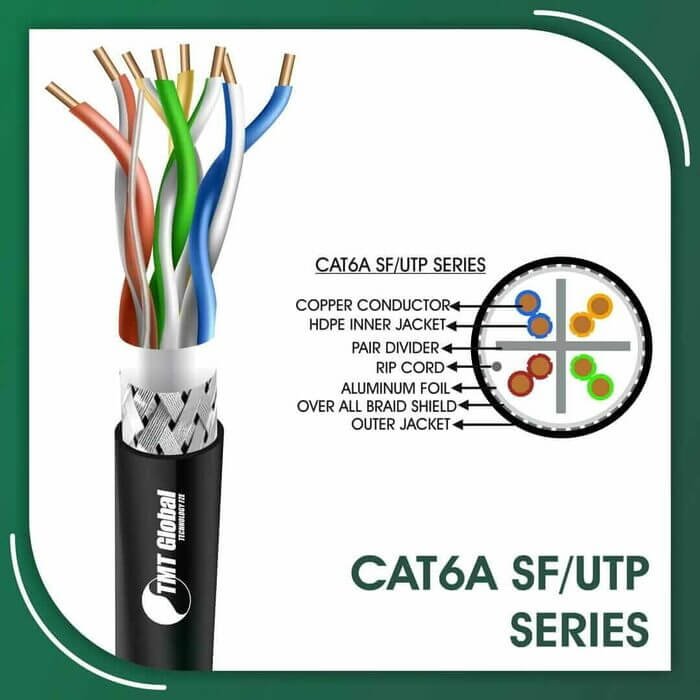

TMT Global Cat6a sf utp 6axx6m PE Outdoor Cable 23 awg 4 pair 305m The TMT Global Cat6a sf utp 6axx6m PE Outdoor Cable 23 awg 4 pair 305m is a premium choice for those in search of reliable and high-quality building automation solutions. Spanning 305 meters, this PVC cable is meticulously manufactured, tested, and complies with stringent standards including IEC 60332-1-2 and ISO/IEC 11801:2011. Its flexible construction allows for effortless installation in narrow spaces,making it ideal for a variety of applications such as CCTV systems, audio-video intercoms, public address systems, and smart home automation. This versatile cable not only supports high-performance structured cabling systems but also meets complex specifications across multiple industries, ensuring seamless connectivity and communication for any indoor or outdoor setup. APPLICATION 10BASE-T, 100BASE-TX Fast Ethernet, 1000BASE-T (IEEE802.3 100VG-AnyLAN (IEEE802.12) 550 MHz Broadband Video Voice, T1, ISDN 155/ 622 Mbps ATM Power over Ethernet (POE) POE ELECTRICAL SPECIFICATIONS Characteristic Impedance: 100±6 Ohm @ 1-500 MHz Loop Resistance: 25 Resistance unbalance: 2% max. Mutual Capacitance: 5.6 nF/100m Max. @ 1 KHz Cap. Unbalance (wire to ground): 1500 pF/Km max. @ 1 KHz. Voltage rating: 72 Vdc max. Dielectric strength: 1500 Volts/1 minute min rms Velocity of Propagation (NVP): 67-69% Propagation Delay Skew: 534 36/vf. nS/100m max @ 1-500 MHz Insulation Resistance: 45 nS/100m max @ 1-500 MHz Coupling attenuation: 55 dB min @ 30-100 MHz 55-20Log(f/100) @100-500 MHz PHYSICAL AND MECHANICAL PROPERTIES Basic Conductor: tmt copper Conductor Size: 23AWG Insulation: HDPE Number of insulated conductors: 8, twisted in 4 pairs Color Code of Pairs: Blue x White/Blue, Orange x White/Orange, Green x White/Green, Brown x White/Brown Overall Coverage: Braided Shield aluminum Foil Polyester Tape Drain wire: N Outer Jacket: PE OUTDOOR Standard Jacket Color:Black Standard Surface Marking: Includes TMT Global P/N, cable description, Meter mark and Model Number Pulling force: 110 N max. Short Term Bend Radius: 8xOD (mm) Temperature operating range: -20 to 80C Installation temperature range: 0 to 50C Ordering Information Item Name: 23AWG 4PAIR CAT6A SF/UTP OUTDOOR SERIES – BLACK
