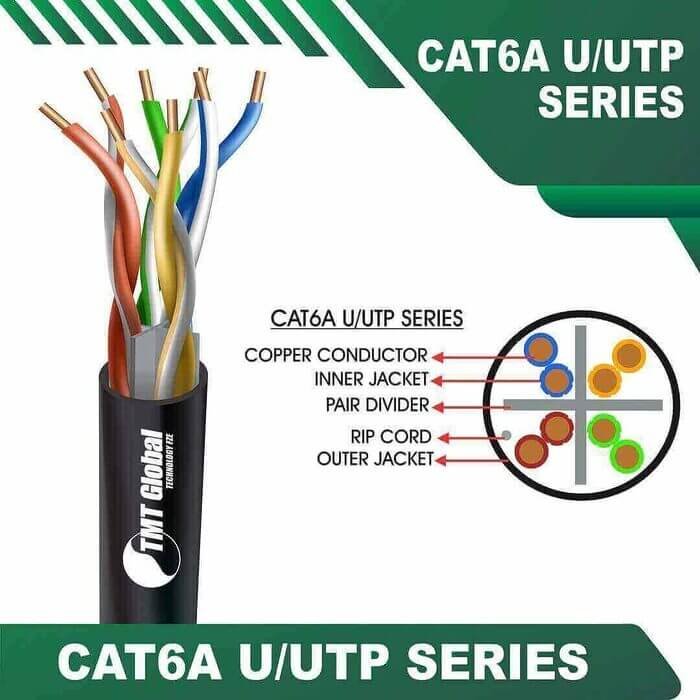

TMT GLOBAL Cat6a 23 awg 4 pair 305m PE Outdoor ethernet Cable The TMT Global Cat6a 23 awg 4 pair 305m PE Outdoor ethernet Cable represents a top-tier option for individuals seeking dependable and high-quality solutions in building automation. Measuring 305 meters in length, this PVC cable is carefully crafted, rigorously tested, and adheres to strict standards such as IEC 60332-1-2 and ISO/IEC 11801:2011. Its flexible design facilitates easy installation in confined spaces, making it suitable for a wide range of applications including CCTV systems, lszhhffr sheath bs 6387 cwz 6387 cwz en 50200 ph120 sheath bs 6387 cwz en bs 6387 cwz en 50200 audio-video intercoms, public address systems, and smart home automation. This adaptable cable not only accommodates high-performance structured cabling systems but also fulfills intricate specifications across various industries, guaranteeing uninterrupted connectivity and communication for any indoor or outdoor configuration.nonshielded plenum 10g 23awg4pr 1000 utp nonshielded plenum 10g 23awg4pr APPLICATION 10BASE-T, 100BASE-TX Fast Ethernet, 1000BASE-T (IEEE802.3 100VG-AnyLAN (IEEE802.12) 550 MHz Broadband Video Voice, T1, ISDN 155/ 622 Mbps ATM Power over Ethernet (POE) POE ELECTRICAL SPECIFICATIONS Characteristic Impedance: 100±6 Ohm @ 1-500 MHz Loop Resistance: 25 Resistance unbalance: 2% max. Mutual Capacitance: 5.6 nF/100m Max. @ 1 KHz Cap. Unbalance (wire to ground): 1500 pF/Km max. @ 1 KHz. Voltage rating: 72 Vdc max. Dielectric strength: 1500 Volts/1 minute min rms Velocity of Propagation (NVP): 67-69% Propagation Delay Skew: 534 36/vf. nS/100m max @ 1-500 MHz Insulation Resistance: 45 nS/100m max @ 1-500 MHz Coupling attenuation: 55 dB min @ 30-100 MHz 55-20Log(f/100) @100-500 MHz PHYSICAL AND MECHANICAL PROPERTIES Basic Conductor: tmt copper Conductor Size: 23AWG Insulation: HDPE Number of insulated conductors: 8, twisted in 4 pairs Color Code of Pairs: Blue x White/Blue, Orange x White/Orange, Green x White/Green, Brown x White/Brown Overall Coverage: N Drain wire: N Outer Jacket: PE OUTDOOR Standard Jacket Color:Black Standard Surface Marking: Includes TMT Global P/N, cable description, Meter mark and Model Number Pulling force: 110 N max. Short Term Bend Radius: 8xOD (mm) Temperature operating range: -20 to 80C Installation temperature range: 0 to 50C Ordering Information Item Name: 23AWG 4PAIR CAT6A U/UTP OUTDOOR SERIES – BLACK
