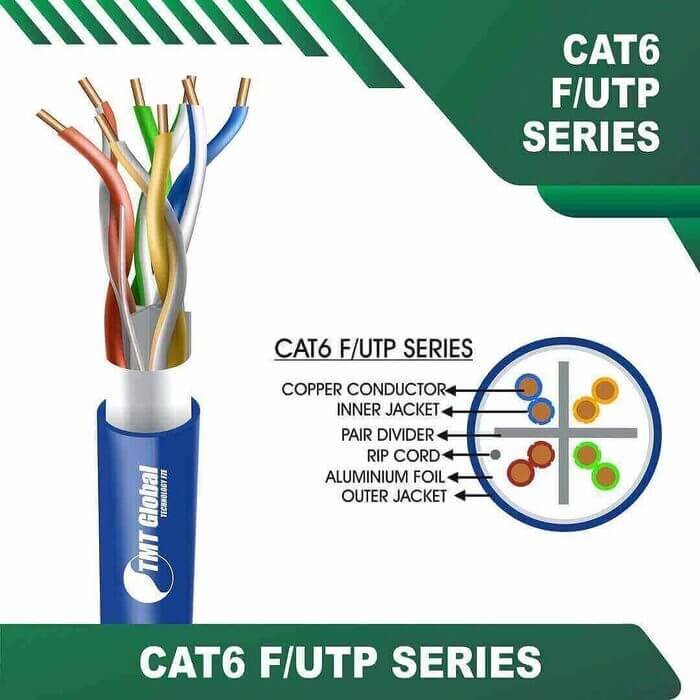

TMT GLOBAL Cat6 f utp 6xxx6m LSZH Cable 23 awg 4 pair 305m TMT Global Technology LTD aims to provide the best quality products, including structured cabling systems, copper and fiber optics range, access control systems, gate automation, lighting control systems, PIR motion sensors, UHF long-range readers, automatic parking solutions, SMATV systems, audio video intercom systems, audio visual systems, and public address systems. Industrial and building automation cables and accessories lead to customer satisfaction and reliability. All TMT Global products meet or exceed rigorous industry and regulatory standards for quality, reliability, and efficiency. From design and fabrication to finished product assembly, each phase in the manufacturing process is rigorously monitored and measured to ensure the highest quality, durability, and operating excellence.Cat6 f utp 6xxx6m LSZH Cable 23 awg 4 pair 305m ELECTRICAL SPECIFICATIONS Characteristic Impedance: 100±6 Ohm @ 1-250 MHz DC Resistance: 93 Ohm/Km max. Resistance unbalance: 2% max. Mutual Capacitance: 5.6 nF/100m Max. @ 1 KHz Cap. Unbalance (wire to ground): 1600 pF/m max. @ 1 KHz. Voltage rating: 72 Vdc max. Dielectric strength: 1500 Volts/1 minute min rms Velocity of Propagation (NVP): 67-69% Propagation Delay Skew: 514 36/vf. nS/100m max @ 1-300 MHz Insulation Resistance: 5000 Mega Ohm•Km min. @ 500 Vdc Coupling attenuation: 40 dB min @ 30-100 MHz 40-20Log(f/100) @100-300 MHz PHYSICAL AND MECHANICAL PROPERTIES Basic Conductor: TMT copper Conductor Size: 23AWG Insulation: HDPE Number of insulated conductors: 8, twisted in 4 pairs Color Code of Pairs: Blue x White/Blue, Orange x White/Orange, Green x White/Green, Brown x White/Brown Overall Coverage: Polyester-aluminum tape Drain wire: N Outer Jacket: LSZH Standard Jacket Color:Blue/Gray /Black/Green/Orange/Red/Violet/White/Yellow./Aqua Standard Surface Marking: Includes TMT Global P/N, cable description, Meter mark and Model Number Pulling force: 110 N max. Short Term Bend Radius: 8xOD (mm) Temperature operating range: -20 to 80C Installation temperature range: 0 to 50C Ordering Information Item Name: 23AWG 4PAIR CAT6 F/UTP CABLE LSZH 305M
