Cat5e f utp 5xxx5B pe Outdoor Cable 24 awg 4 pair 305m

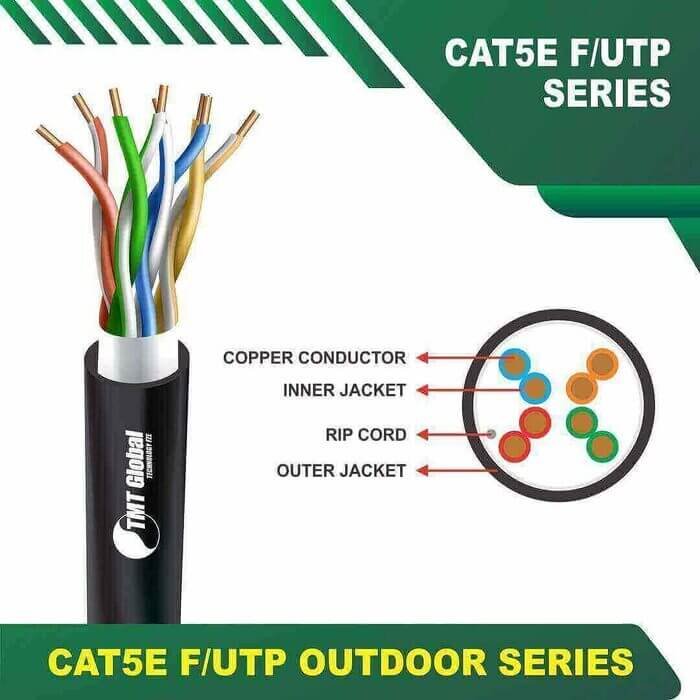

TMT GLOBAL Cat5e f utp 5xxx5B pe Outdoor Cable 24 awg 4 pair 305m The TMT Global Cat5e f utp 5xxx5B pe Outdoor Cable 24 awg 4 pair 305m  – black is a premium choice for those in search of reliable and high-quality structured cabling solutions. Spanning 305 meters, this Outdoor cable is meticulously manufactured, tested, and complies with stringent standards, including IEC 60332-1-2 and ISO/IEC 11801:2011. Its flexible construction allows for effortless installation in narrow spaces, making it ideal for a variety of applications such as CCTV systems, audio-visual intercoms, public address systems, and smart home automation. This versatile cable not only supports high-performance structured cabling systems but also meets complex specifications across multiple industries, ensuring seamless connectivity and communication for any indoor or outdoor setup. APPLICATION 10BASE-T, 100BASE-TX Fast Ethernet, 1000BASE-T (IEEE802.3 100VG-AnyLAN (IEEE802.12) 550 MHz Broadband Video Voice, T1, ISDN 155/ 622 Mbps ATM Power over Ethernet (POE) ELECTRICAL SPECIFICATIONS Characteristic Impedance: 100―6 Ohm @ 1-100 MHz DC Resistance: 93 Ohm/Km max. Resistance unbalance: 2% max. Mutual Capacitance: 5.6 nF/100m Max. @ 1 KHz Cap. Unbalance (wire to ground): 1500 pF/Km max. @ 1 KHz. Voltage rating: 72 Vdc max. Dielectric strength: 1500 Volts/1 minute min rms Velocity of Propagation (NVP): 67-69% Insulation Resistance: 5000 Mega Ohm•Km min. @ 500 Vdc Insulation Resistance: 45 nS/100m max @ 1-100 MHz Coupling attenuation: 40 dB min @ 30-100 PHYSICAL AND MECHANICAL PROPERTIES Basic Conductor: Bare copper Conductor Size: 24AWG Insulation: HDPE Number of insulated conductors: 8, twisted in 4 pairs Color Code of Pairs: Blue x White/Blue, Orange x White/Orange, Green x White/Green, Brown x White/Brown Outer Jacket: Heavy-duty, black, UV-resistant PE compound for outdoor use. Standard Jacket Color: Black Overall Coverage: Aluminum Foil Polyester Tape Standard Surface Marking: Includes TMT Global P/N, cable description, Meter mark and Model Number Pulling force: 110 N max. Short Term Bend Radius: 6xOD (mm) Temperature operating range: -20 to 80C Installation temperature range: 0 to 50C Ordering Information Item Name: 24AWG 4PAIR CAT5 F/UTP OUTDOOR CABLE 305M – BLACK Item Code: 5X245BOK
